NZXT N7 Z490 MOTHERBOARD (MATTE BLACK)

23,500.00

Features

Brand NZXT
Motherboard-cpu-support Intel LGA 1200
Motherboard-max-memory 128GB
Motherboard-memory-support DDR4
Motherboard-size ATX



SKU: N7-Z49XT-B1 Categories: ,

Description

N7 hero b8d171ced868ef4012547ff801e165517e558369708bea0c17d8b7a578184968

SMART CONTROLS

The N7 Z490 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported.

Feature 1 0c7d56d0aba6e2ae897633eb9cc1de9aa295e2ef56ccd1c459ae4a87cf1ea970

STUNNING CRAFTSMANSHIP

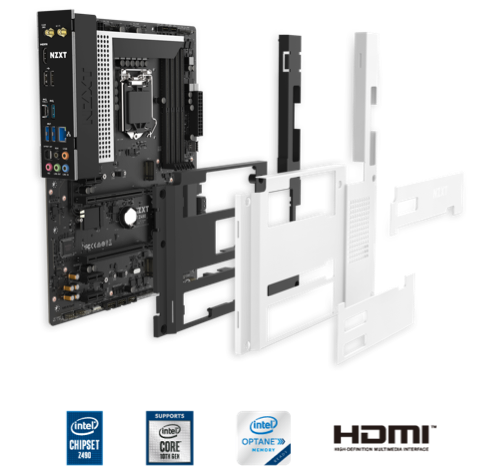

The N7’s white or black covers provide a clean design that blends seamlessly with your case.

Feature 2 187ecc8163100c99ab384a79278e0195d37f2d8f685e879a99137ac47838fe94

BUILDING MADE EASIER

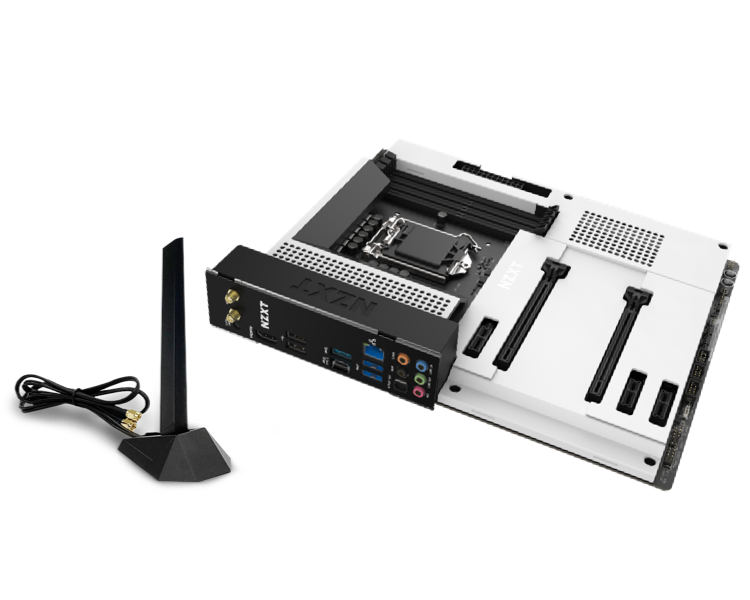

The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended. The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.

Feature 3 9c75ea302a2228608ae1c4143aea71596ca7d8ddf55d37aa5bc44030e92091cd
Z490 spec d39acdb7301ceba3729047397e4e422cf3d8dc58fdd4eb867f416f9307f019ee
N7 Z490
Intel Z490 Gaming Motherboard with Wi-Fi and CAM Features
Fan Channels and Support:1x for CPU fan(s), 2A

1x for AIO pump, 2A

5x for System fans, 0.5A each

M.2 Slots for Storage:1x PCIe & SATA

1x PCIe

Lighting Channels and Support:2x NZXT RGB LED Connectors

1x5V Addressable RGB LED Connectors

1x12V RGB LED Connector

USB Ports and Headers:1x USB 3.2 Gen 2 (Ports)

1x USB 3.2 Gen 2(Type-C)

1xUSB 3.2 Gen 2 Front Panel Port (USB Type-C)

4x USB 3.2 Gen 1 Port (2 back panel 2 at mid-board)

8xUSB 2.0 Ports (2 at back panel)

Wireless & Bluetooth:Intel Dual Wireless-AX200 Wi-Fi 6

Bluetooth V5.1

NZXT N7 Z490 MOTHERBOARD (MATTE BLACK)

Features

  • Designed around Intel’s Z490 chipset, the N7 Z490 delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6 connectivity, integrated fan controller, RGB accessories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components
  • The N7 Z490 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported.
  • The N7’s white or black covers provide a clean design that blends seamlessly with your case.
  • The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended.
  • The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.
CPU & Socket LGA socket 1200 for Intel® 10th Generation Core™ i9/ Core™ i7/ Core™ i5/ Core™ i3 Processors
Support Intel 14nm CPU
Support Intel Turbo Boost Technology 2.0
Chipset Intel Z490
Memory 4 x DIMM, Max. 128GB, DDR4
4266 (O.C.)/ 4133 (O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual-channel memory architecture
Support Intel® Extreme Memory Profile (XMP) 2.0
Integrated Graphics Integrated Graphics Processor- Intel® HD Graphics Single-graphic output support: HDMI port
HDMI™ with max. resolution of 4096×2160@24Hz
Maximum shared memory of 1024MB (for iGPU exclusively)
Multi GPU Support Supports AMD 2-Way CrossFireX™ Technology
Storage  Intel® Z490 Chipset
1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode)
1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only)
4 x SATA 6Gb/s ports
Support RAID 0/1/5/10
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15
Intel® Optane Memory Ready
LAN Realtek® RTL8125BG 2.5G LAN
Wireless  Intel® Dual Band Wireless-AX200 Wi-Fi 6
Wi-Fi 802.11 a/b/g/n/ac/ax
Support dual band frequency 2.4/5GHz
Supports MU-MIMO
Bluetooth  Bluetooth V5.1
Audio Realtek® ALC1220 Codec
8-Channel High Definition Audio, 32-bit /192KHz DAC
Nichicon Fine Gold Series Audio Capacitors
USB Ports  1 x USB 3.2 Gen 2 ports (1 at back panel [blue])
1 x USB 3.2 Gen 2 Type-C (at back panel)
1 x USB 3.2 Gen 2 front panel port (For USB Type-C)
4 x USB 3.2 Gen 1 ports (2 at back panel [blue], 2 at mid-board)
8 x USB 2.0 ports (2 at back panel, 6 at mid-board)
Expansion Slots 2 x PCIe 3.0 x16 (x16 or dual at 16/x4)
3 x PCIe 3.0 x1
Rear I/O 1 x USB 3.2 Gen 2 port (Light Blue)
2 x USB 3.2 Gen 1 ports (Blue)
1 x USB 3.2 Gen 2 Type-C port
2 x USB 2.0 ports
1 x HDMI™ 1.4b
1 x 2×2 Wireless antenna
1 x Clear CMOS button
1 x LAN (RJ45) port
1 x Optical S/PDIF Out port
1 x 5.1-Channel audio jacks
Internal I/O 1 x 24-pin EATX power connector
1 x 8+4-pin ATX 12V power connector
1 x 4-pin CPU_FAN connector (Up to 24W per channel)
1 x 4-pin AIO_PUMP connector (Up to 24W per channel)
5 x 4-pin SYS_FAN connectors (Up to 24W per channel)
2 x NZXT RGB LED connectors
1 x 5V Addressable RGB LED connector
1 x 12V RGB LED connector
3 x USB 2.0 header (Up to 6 USB 2.0 ports)
1 x USB 3.2 Gen 1 header (Up to 2 USB 3.2 Gen 1 ports)
1 x USB 3.2 Gen 2 front panel header (For USB Type C)
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 & SATA mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 mode only)
1 x M.2 Socket 1 with E Key, (For wireless cards, supports CNVio)
1 x Power button
1 x Reset button
1 x Front panel audio connector
4 x POST LEDs
Included Accessories 1 x User’s manual
4 x SATA cables (2 x 90 degree, 2 x 180 degree)
1 x Wireless antenna
2 x M.2 screws
Operating System Microsoft® Windows® 10 (64-bit)
Form Factor ATX
Regulations & Certifications (EMC & Safety) FCC, CE, WHQL, ErP/EuP Ready
Warranty 3 Years
Model Number N7-Z49XT-B1

Additional information

Designed around Intel’s Z490 chipset, the N7 Z490 delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6 connectivity, integrated fan controller, RGB accessories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components

The N7 Z490 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported.

The N7’s white or black covers provide a clean design that blends seamlessly with your case.

The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended.

The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.
