FRACTAL DESIGN MESHIFY 2 LIGHT EATX MID TOWER CABINET

15,200.00

Specification :

Product Code FD-C-MES2A-04
3.5″/2.5″ Universal drive mounts 6 included, 14 positions total + 1 Multibracket
Dedicated 2.5″ drive mounts 2 included, 4 positions total
Expansion slots 7 + 2
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts 9x 120/140 mm
Front fan 3x 120/140 mm (2x Dynamic X2 GP-14 included
Top fan 3x 120/140 mm
Rear fan 1x 120/140 mm (1x Dynamic X2 GP-14 included)
Bottom fan 2x 120/140 mm
Dust filters Top, front and bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD, SSD and PSU brackets
Left side panel Tempered glass dark tint
Right side panel Steel
SKU: FD-C-MES2A-04 Category:

Description

Fractal Design Case

Fractal Design Case

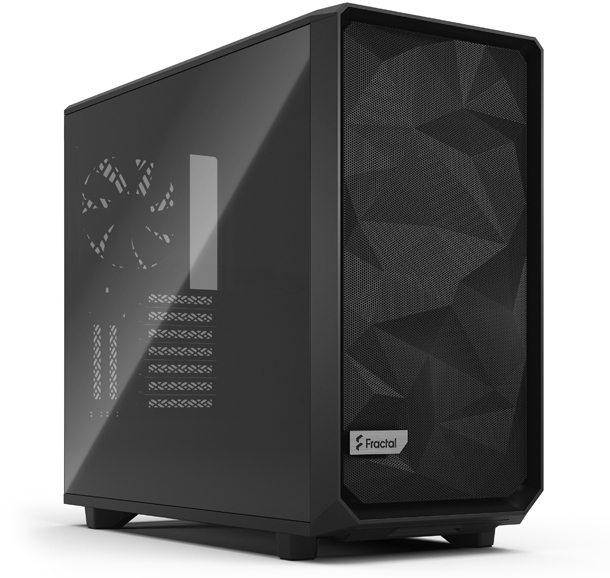

The Meshify 2 is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a fully redesigned front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multi-radiator setups that makes cooling a breeze.

Fractal Design Case
Fractal Design Case

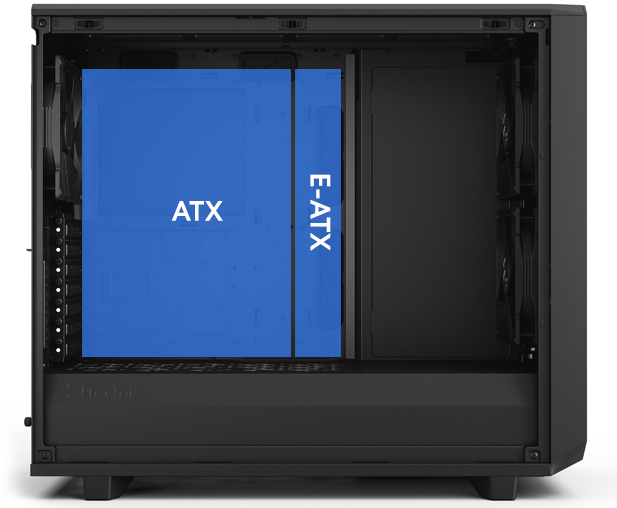

GENEROUS SPACE

Meshify 2’s roomy internal layout easily accommodates E-ATX motherboards up to 285 mm wide.

Fractal Design Case

SMOOTH AND STURDY

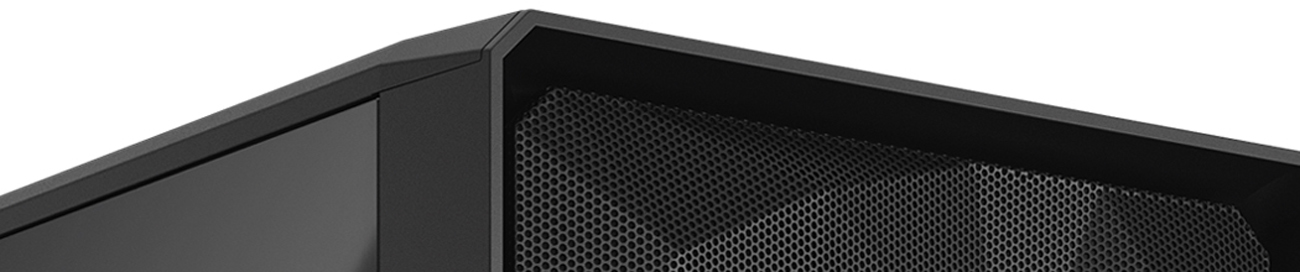

The Meshify 2 is remarkably robust and comes with an angular asymmetrical style front mesh.

EXTREMELY FLEXIBLE

Transformable interior design utilizing a movable wall for enhancing custom builds.

Fractal Design CaseFractal Design Case
Fractal Design Case

FLEXIBLE DUAL-LAYOUT DESIGN

There’s more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

Fractal Design Case

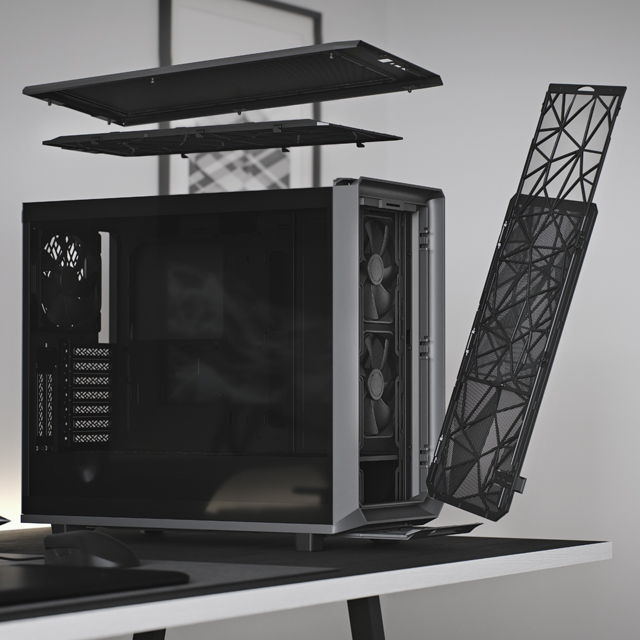

DETACHABLE FRONT FILTER

The new front nylon filter can easily be removed from the hinged mesh panel for increased airflow.

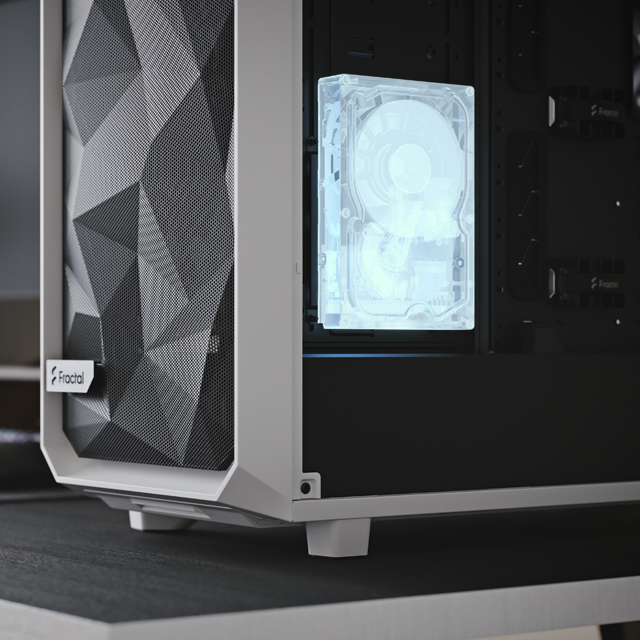

SUPERLATIVE STORAGE

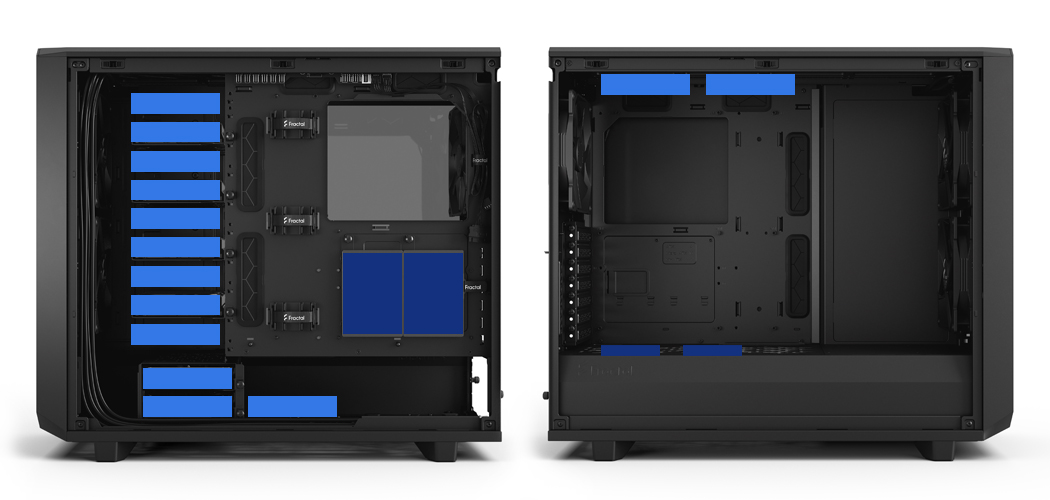

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts.

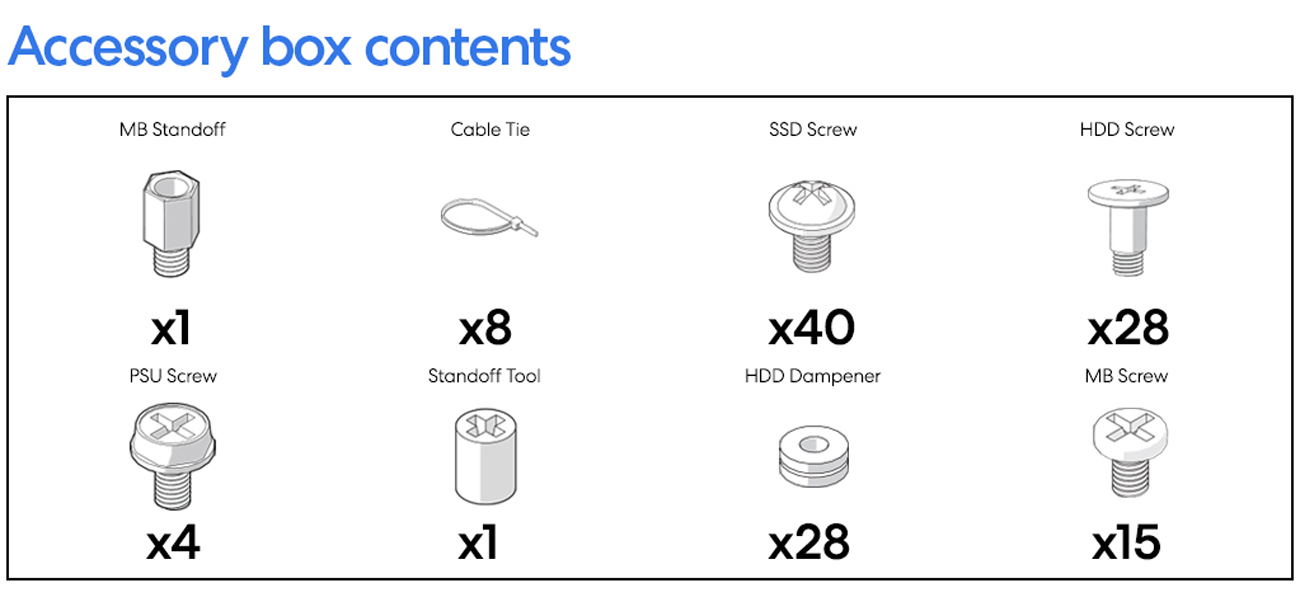

(6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

Fractal Design Case
Fractal Design Case

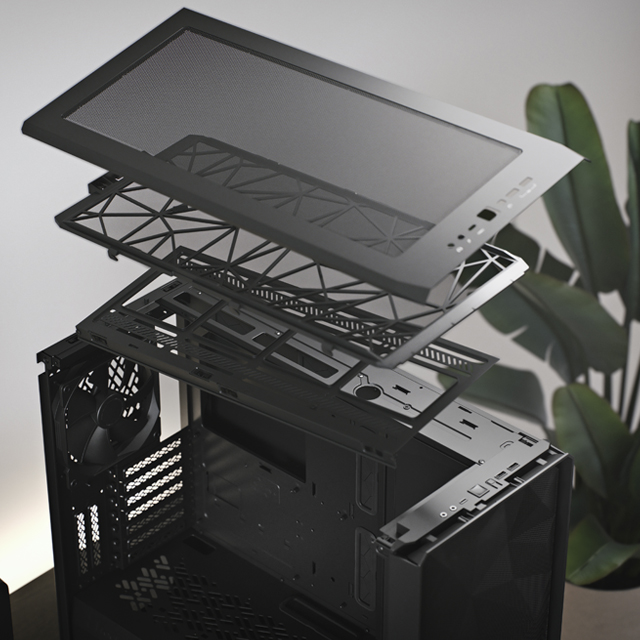

OPEN AND INTERCHANGEABLE

Remove the entire top to build and route with zero hindrance. Swap in the ventilated panel to add three filtered fan positions.

Fractal Design Case

SMOOTH AIRFLOW

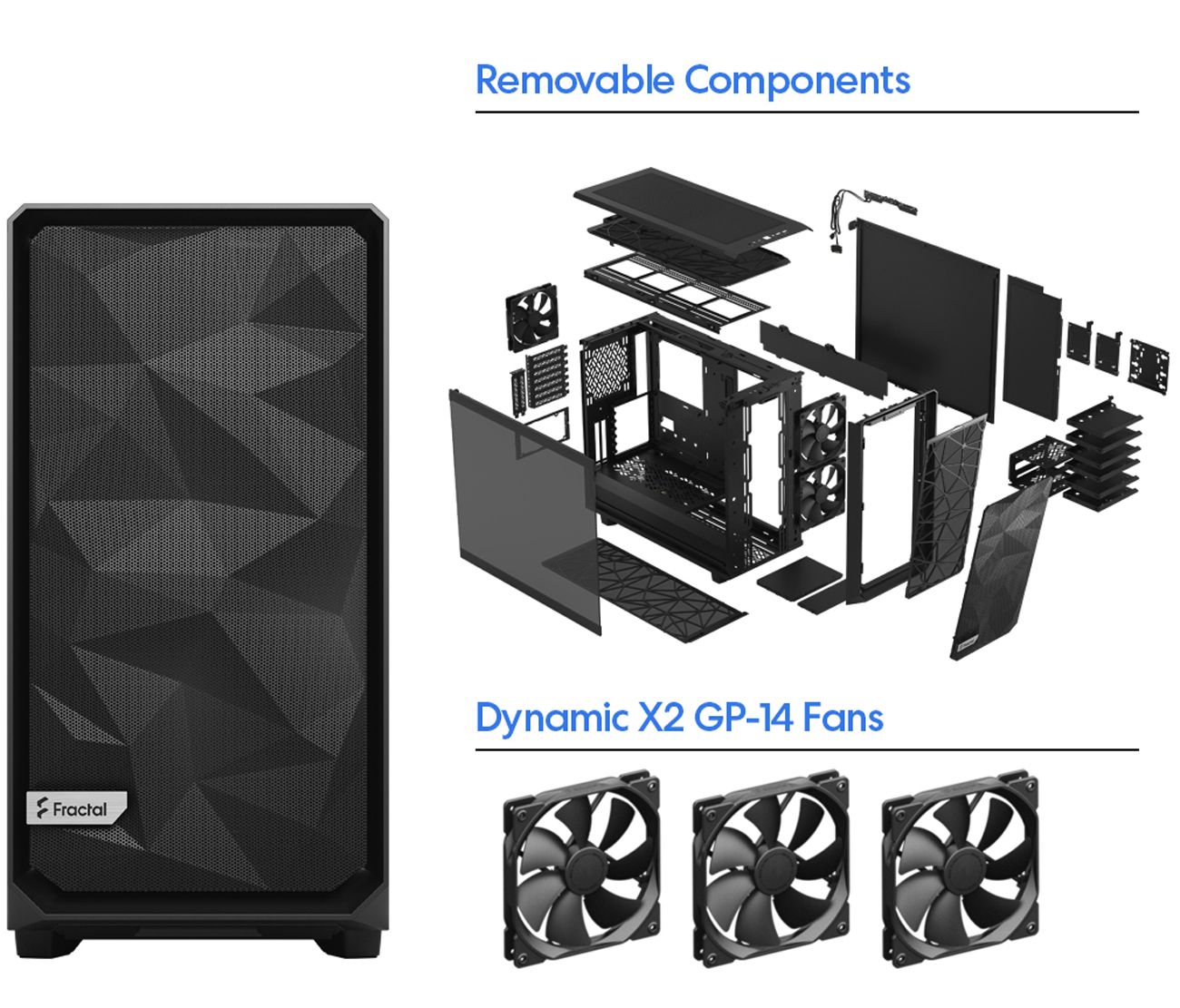

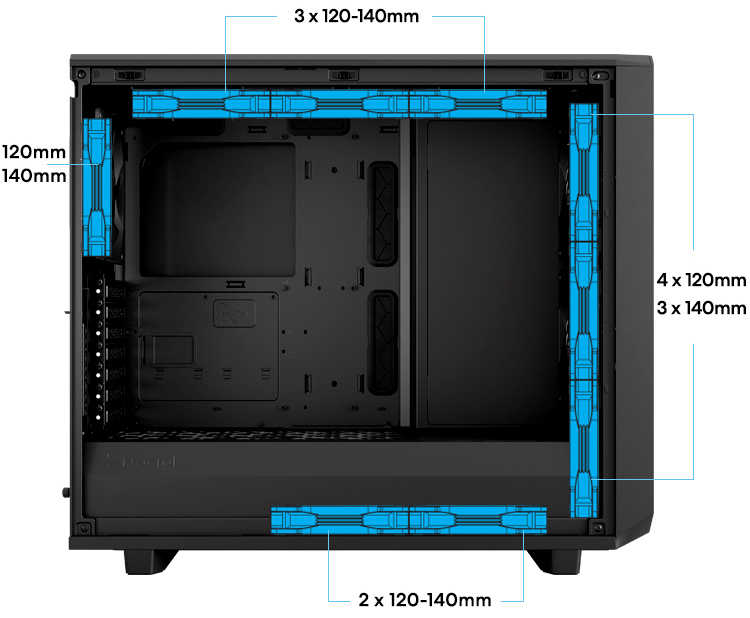

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

Fractal Design Case

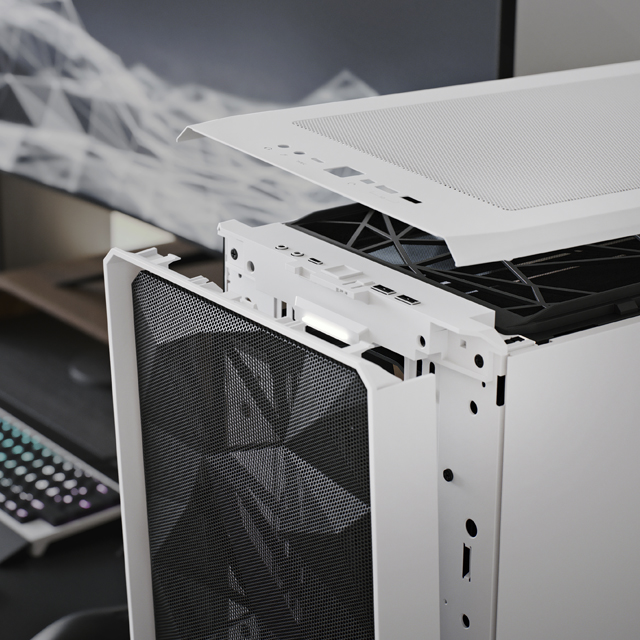

EASIER FRONT ACCESS

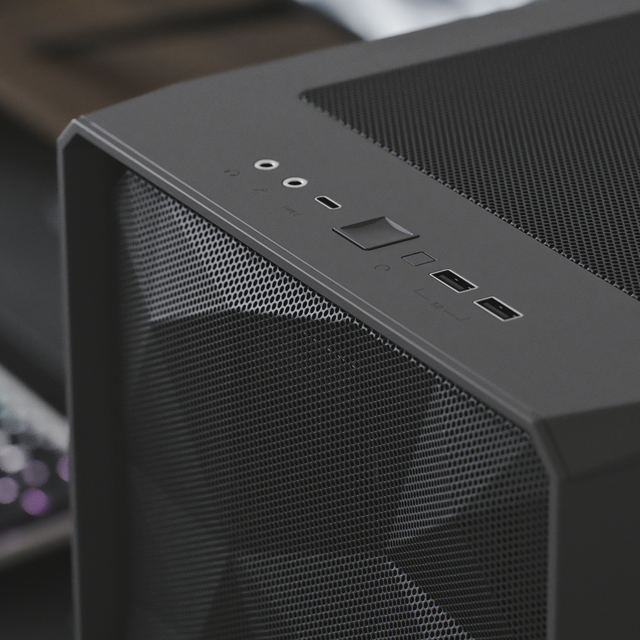

I/O connections are separated from the redesigned front panel to simplify installation and modding.

Fractal Design Case

VERSATILE MULTIBRACKET

The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount.

Fractal Design Case

TYPE-C INTERFACE

USB 3.1 Gen 2 Type-C front I/O offers quick access to fast charging and speeds up to 10Gbps.

Fractal Design Case
Fractal Design CaseFractal Design CaseFractal Design CaseFractal Design Case

Description

FRACTAL DESIGN MESHIFY 2 LIGHT EATX MID TOWER CABINET (GREY) (FD-C-MES2A-04)

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

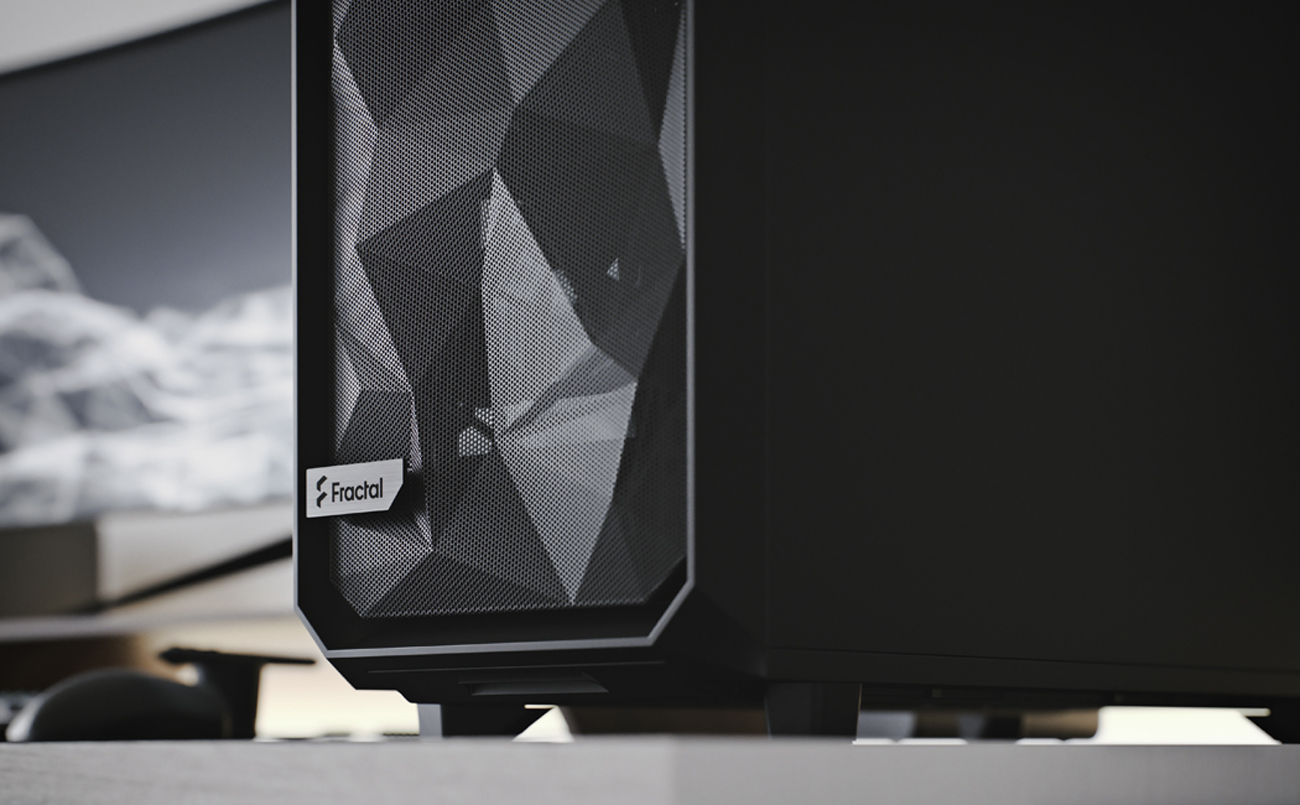

  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX

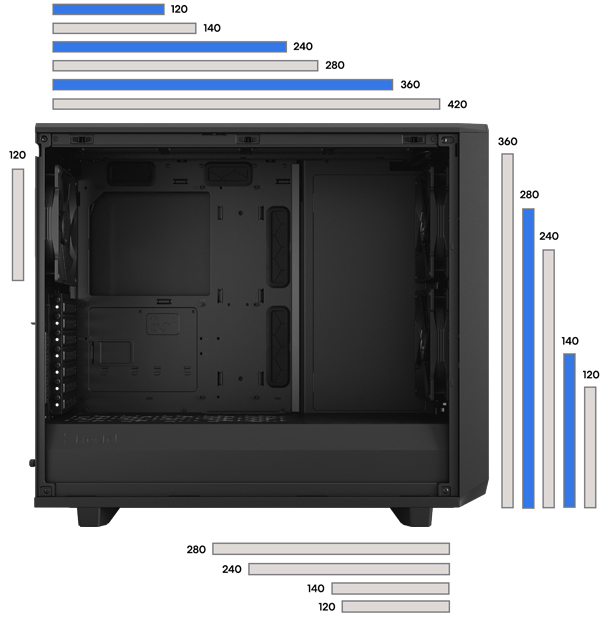

  • Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)



Detachable front filter

  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans



Superlative storage

  • Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
  • Transformable interior design utilizing a movable wall for enhancing custom builds
  • The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops



Extremely flexible

  • Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
  • Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
  • Easily holds large motherboards up to and including 285 mm E-ATX



Open and interchangeable

Remove the entire top to build and route with zero hindrance.

Type-C Interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps.

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket

Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Easy cable management

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Specification :

Product Code FD-C-MES2A-04
3.5″/2.5″ Universal drive mounts 6 included, 14 positions total + 1 Multibracket
Dedicated 2.5″ drive mounts 2 included, 4 positions total
Expansion slots 7 + 2
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts 9x 120/140 mm
Front fan 3x 120/140 mm (2x Dynamic X2 GP-14 included
Top fan 3x 120/140 mm
Rear fan 1x 120/140 mm (1x Dynamic X2 GP-14 included)
Bottom fan 2x 120/140 mm
Dust filters Top, front and bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD, SSD and PSU brackets
Left side panel Tempered glass dark tint
Right side panel Steel
Compatibility
Power supply type ATX
Motherboard compatibility E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
PSU max length 250 mm (with HDD cage installed)
GPU max length Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan)
CPU cooler max height 185 mm
Front radiator Up to 360/280 mm
Top radiator Up to 360/420 mm
Rear radiator 120 mm
Bottom radiator Up to 240/280 mm
Cable routing space 30 mm
Dimensions
Case dimensions (LxWxH) 542 x 240 x 474 mm
Case dimensions w feet/protrusions/screws 541 x 240 x 454 mm
Net weight Solid: 10.1 kg TG: 10.5 kg
Package dimensions (LxWxH) 634 x 542 x 324 mm
Gross weight Solid: 12.8 kg TG: 13.2 kg
Volume 59 liters
Warranty 2 Years
