FRACTAL DESIGN DEFINE 7 DARK ATX MID TOWER CABINET

18,500.00

Specifications

Product Code FD-C-DEF7A-03
3.5″/2.5″ Universal drive brackets 6 included, 14 positions total
Dedicated 2.5″ drive brackets 2 trays included, 4 positions total
5.25” drive mounts 1
Expansion slots 7 + 2
Front ports 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts 9 x 120/140 mm
Front fan 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan 3 x 120/140 mm
Rear fan 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan 2 x 120/140 mm
Dust filters Top, 2 x front, full length bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD brackets, SSD brackets, PSU bracket
Left side panel Tempered glass
SKU: FD-C-DEF7A-03 Category:

Description

Fractal logo
Fractal Define 7 case facing forward

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves you room to grow.



Features icon
Fractal Define 7 GENEROUS SPACE

GENEROUS SPACE

Define 7’s roomy internal layout easily accommodates large motherboards up to and including 285 mm E-ATX.

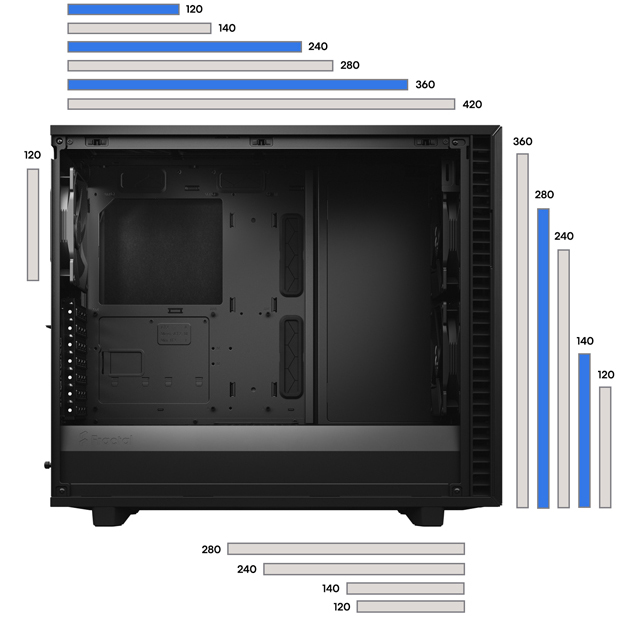

Fractal Define 7 case FLEXIBLE DUAL-LAYOUT DESIGN

FLEXIBLE DUAL-LAYOUT DESIGN

You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

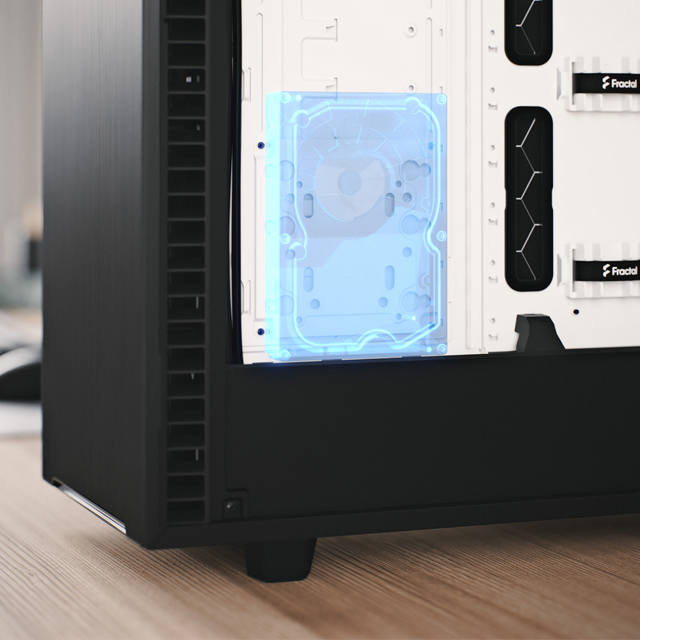

SUPERLATIVE STORAGE

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts.

(6 HDD/SSD trays + 2 SSD brackets + 1 multi-brackets included)

Fractal Define 7 case back viewFractal Define 7 case back view

EXCEPTIONALLY SILENT

Solid construction with industrial high-density sound damping helps maintain whisper silent operation.

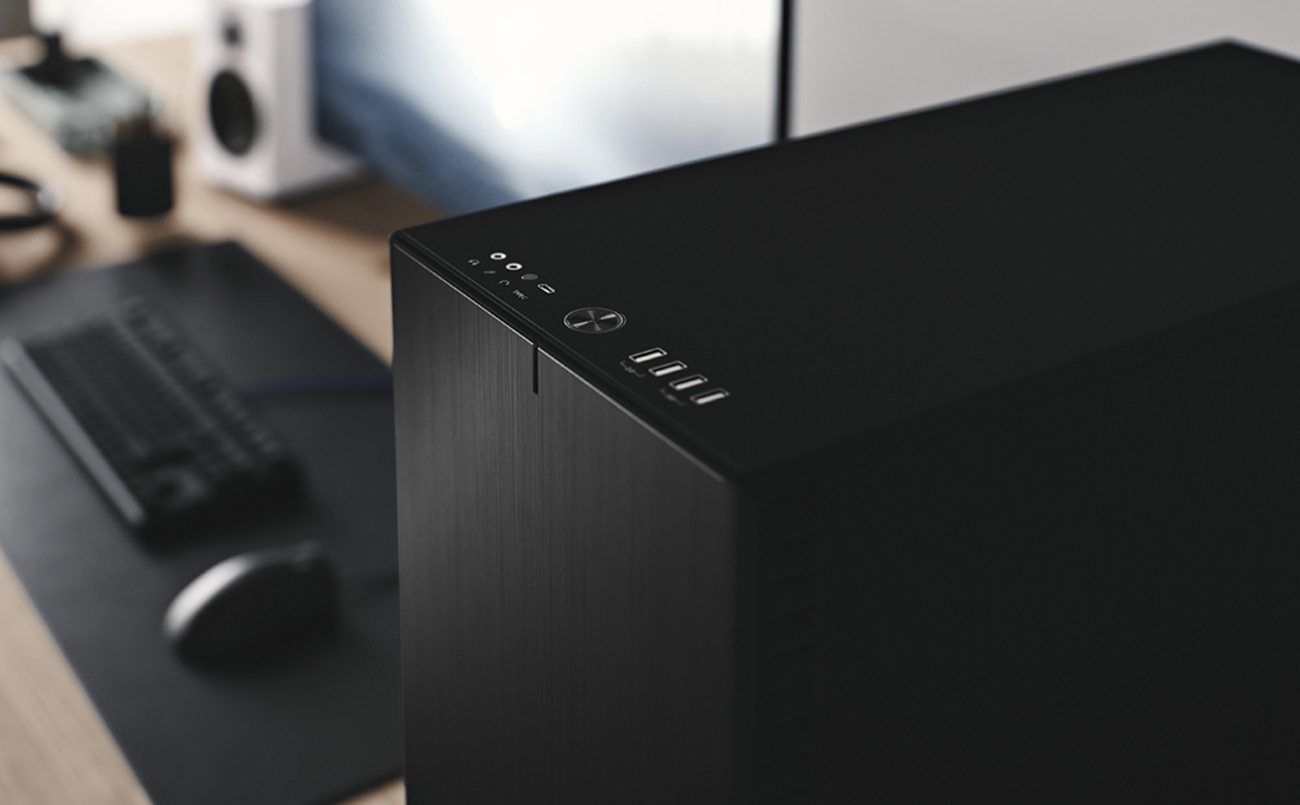

Fractal Define 7 case top close-up

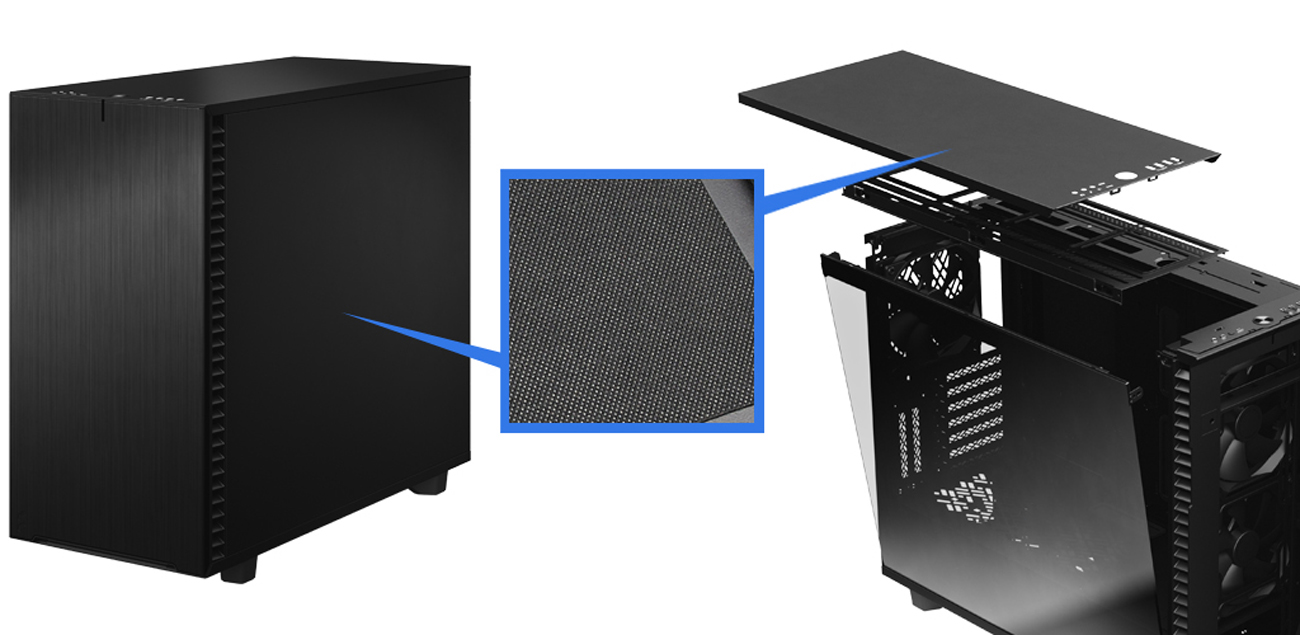

Fractal Define 7 case OPEN AND INTERCHANGEABLE

OPEN AND INTERCHANGEABLE

Remove the entire top to build and route with zero hindrance. Swap in the ventilated panel to add three filtered fan positions.

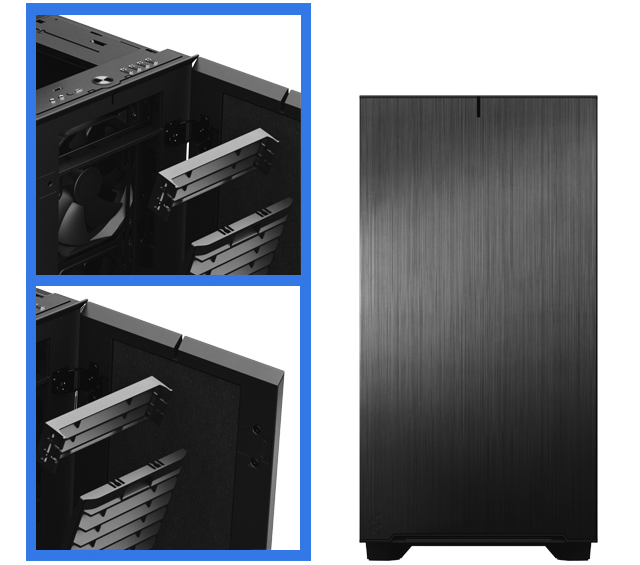

Fractal Define 7 case ELEGANT NEW FRONT DESIGN

ELEGANT NEW FRONT DESIGN

Brushed aluminum encases a refined front door design with reversible dual-handed hinges and magnetic latching.

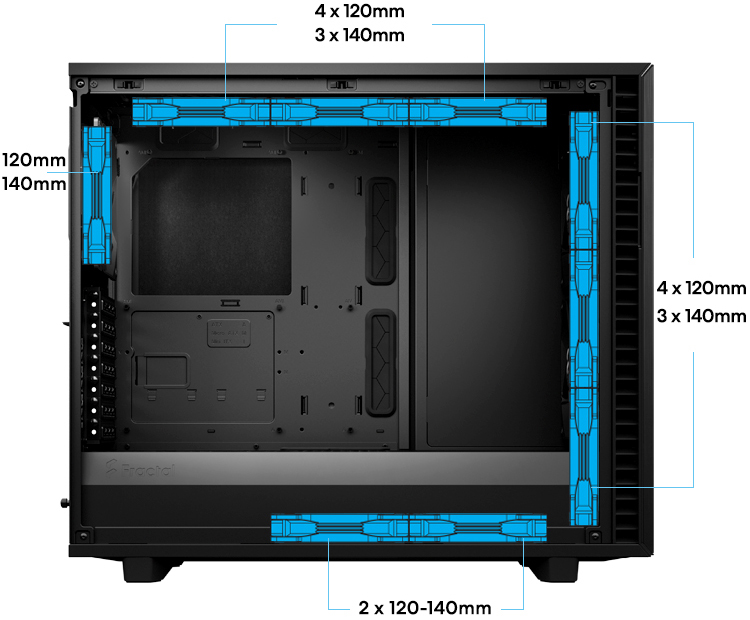

Fractal Define 7 case SUPERIOR AIRFLOW

SUPERIOR AIRFLOW

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

Fractal Define 7 case VERSATILE NEW MULTI-BRACKETS

VERSATILE NEW MULTI-BRACKETS

The included multi-bracket lets you convert any unused fan position or one of several dedicated mounting locations.

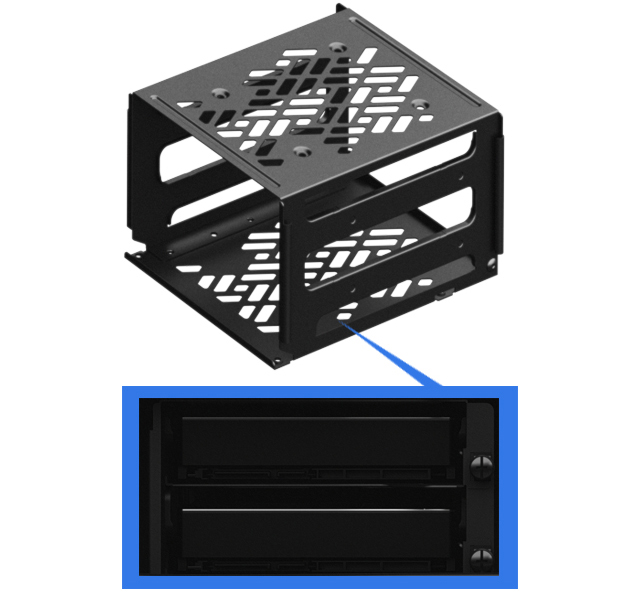

HDD CAGE demo

REDESIGNED HDD CAGE

The sturdy build and vibration damped trays means secure fastening and silent operation for all your storage devices.

Fractal Define 7 case TYPE-C INTERFACE

TYPE-C INTERFACE

USB 3.1 Gen 2 Type-C front I/O offers quick access to fast charging and speeds up to 10Gbps.

Fractal Define 7 case Internal structure display

Specification :

Compatibility
Motherboard Support ATX, E-ATX, Micro-ATX, Mini-ITX
External Drive Bays 1 x 5.25″
Internal Drive Bays 6 x 2.5/3.5″
2 x 2.5″
Expansion Slots 7 x Full Height + 2
Maximum GPU Length 19.33″ / 491 mm
CPU Cooler Height 7.28″ / 185 mm
Supported PSU Size ATX
Maximum PSU Length 9.84″ / 250 mm
Cooling
Fan Mounting (Front) 3 x 120 mm
Or
3 x 140 mm
Fan Mounting (Rear) 1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) None
Fan Mounting (Top) 3 x 120 mm
Or
3 x 140 mm
Fan Mounting (Bottom) 2 x 120 mm
Or
2 x 140 mm
Fans Included (Front) 2 x 140 mm
Fans Included (Rear) 1 x 140 mm
Fans Included (Side) None
Fans Included (Top) None
Fans Included (Bottom) None
Maximum Radiator Size (Front) 360 mm
Maximum Radiator Size (Rear) 120 mm
Maximum Radiator Size (Top) 420 mm
Maximum Radiator Size (Bottom) 280 mm
Fan Mounting (Internal) None
Fans Included (Internal) None
Fan Controller Included Yes
Filter Locations Bottom, Front, Top
I/O
Connections 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
2 x USB Type-A (USB 2.0)
Media Card Slots None
Audio Connections 1 x 3.5 mm Input
1 x 3.5 mm Output
Display Connections None
Physical
Windowed Panel Yes
Material Aluminum, Tempered Glass, Steel
Built-In Lighting No
Cable Management Space 1.18″ / 30 mm
Dimensions (W x H x D) 9.45 x 18.7 x 21.54″ / 240 x 475 x 547 mm
Weight 29.65 lb / 13.45 kg
