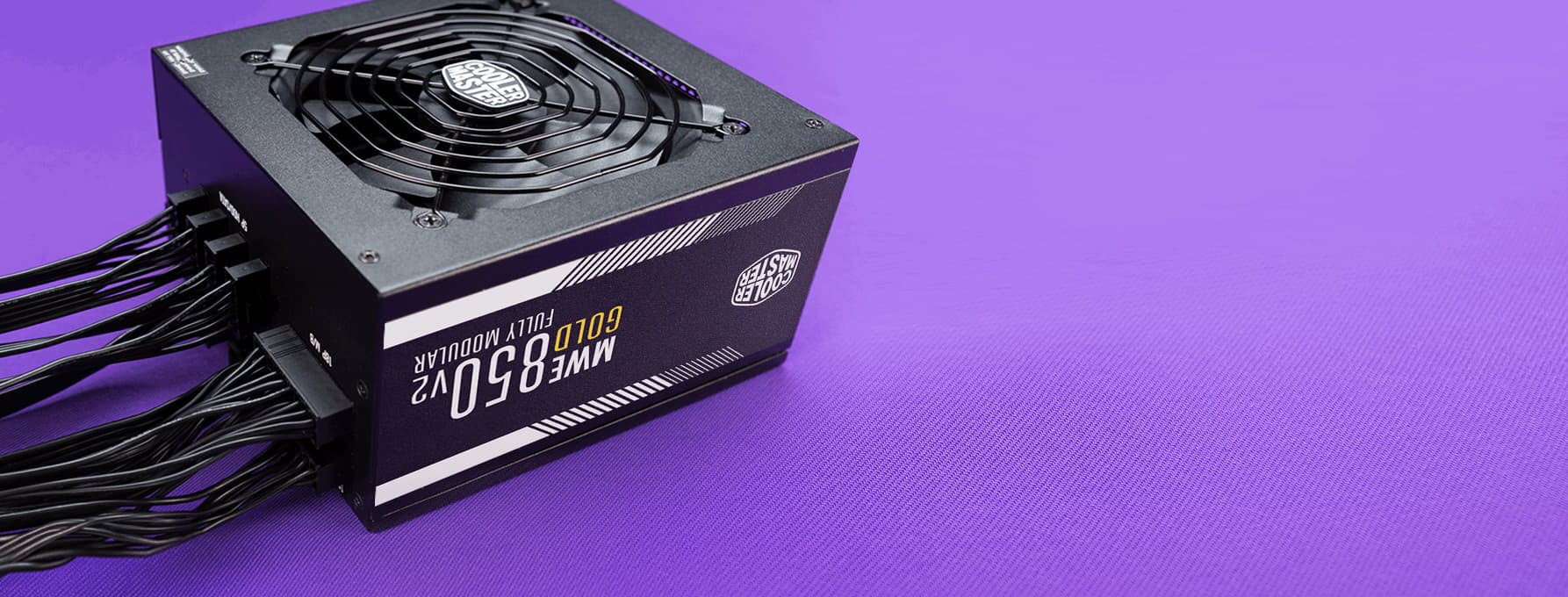

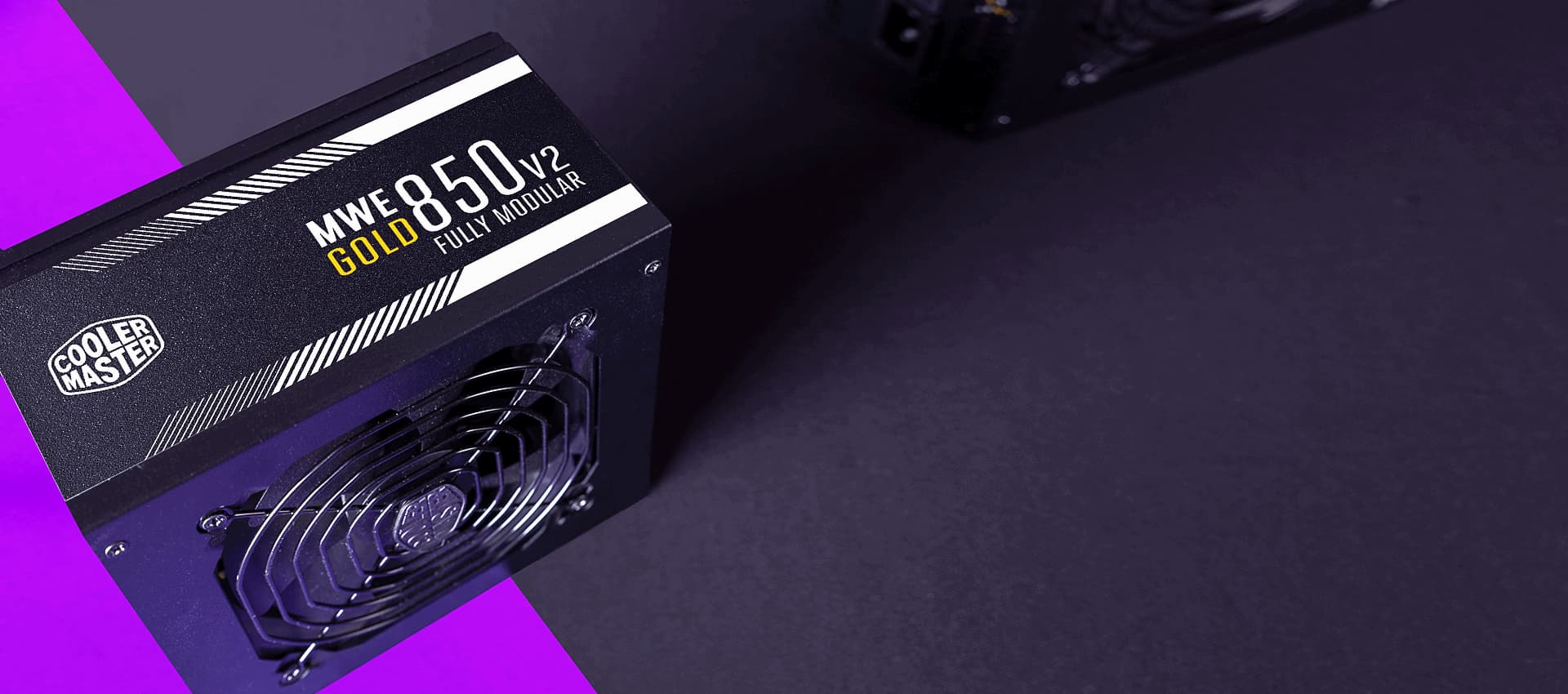

Cooler Master MWE Gold 850 V2 80 Plus Gold Certified, Fully Modular Power Supply – Black



Model MPE-8501-AFAAG
ATX Version ATX 12V
PFC Active PFC
Input Voltage 90-264V
Input Current 12-6 A
Input Frequency 47-63Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Fan Speed 1500 RPM
Noise Level @ 20% 0 dBA
Noise Level @ 50% 17.9 dBA
Noise Level @ 100% 25.9 dBA
Efficiency 90% Typically
80 PLUS Rating 80 PLUS Gold




Compared to the original MWE Gold series power supply, the MWE Gold V2 (Full Modular) offers enhanced cooling and supports higher operating temperature. Coupled with 80 Plus Gold certified high efficiency, two EPS connectors, and fully modular design, it is an impeccable choice for any high-performance build.

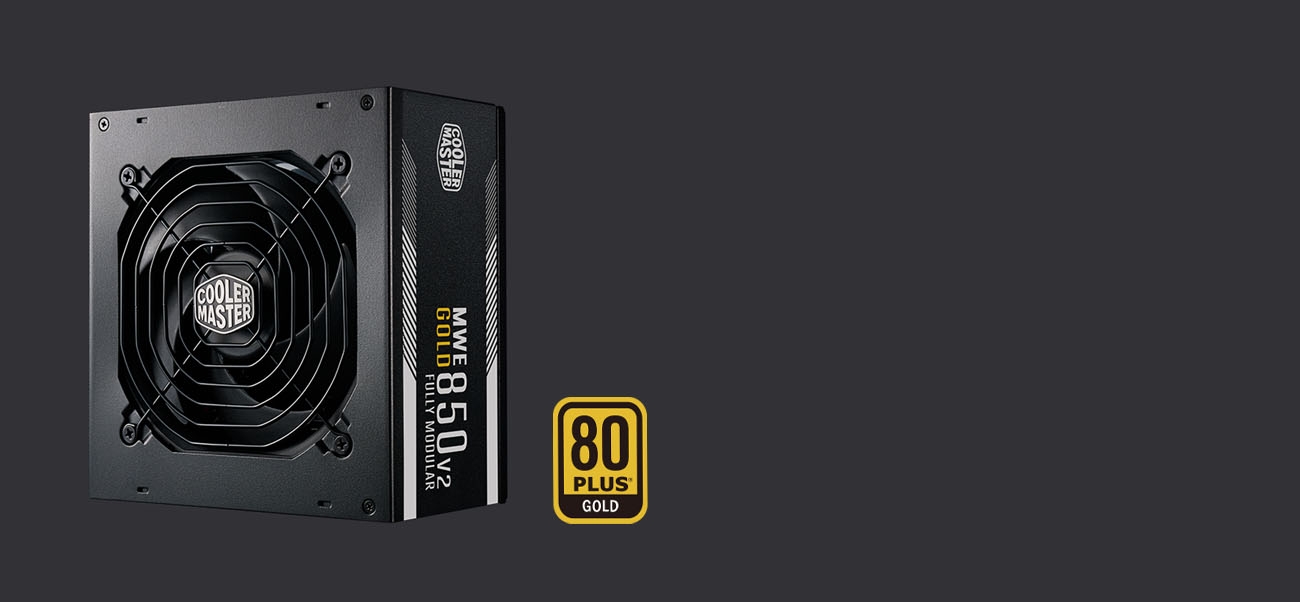

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

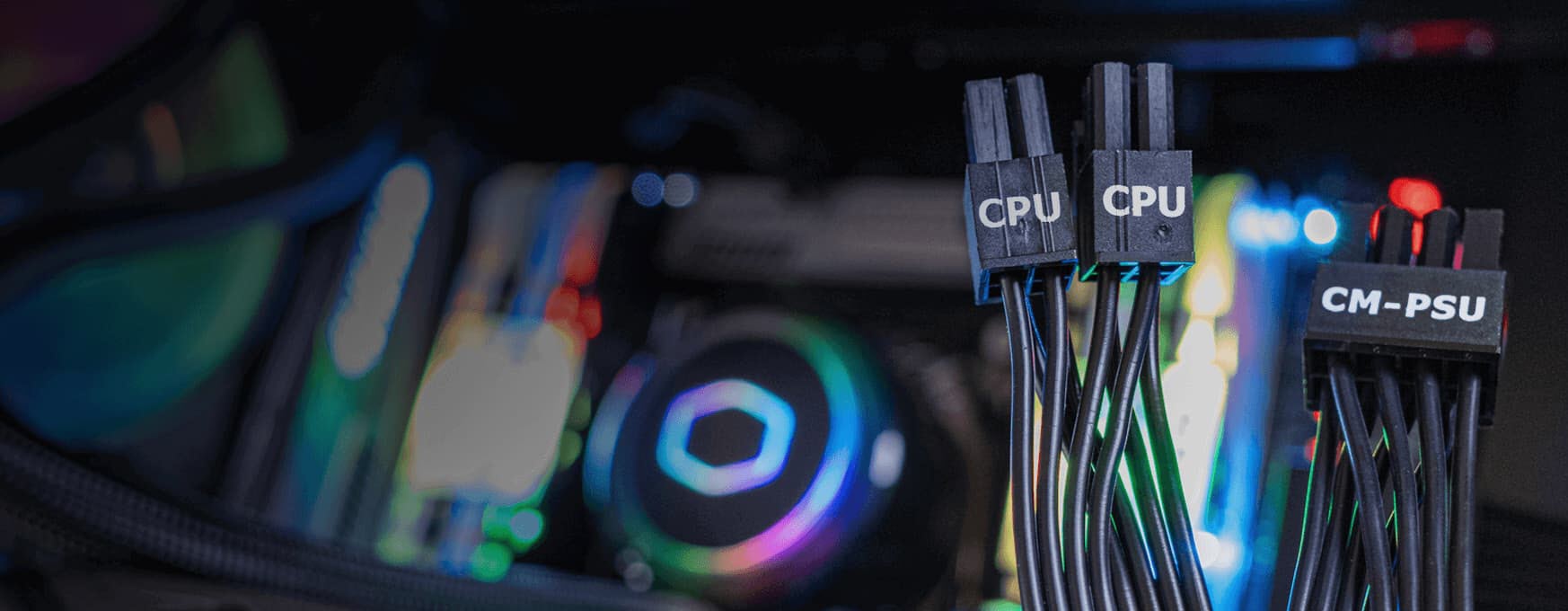

All MWE Gold V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you’ll have enough connectors to use your ideal components.

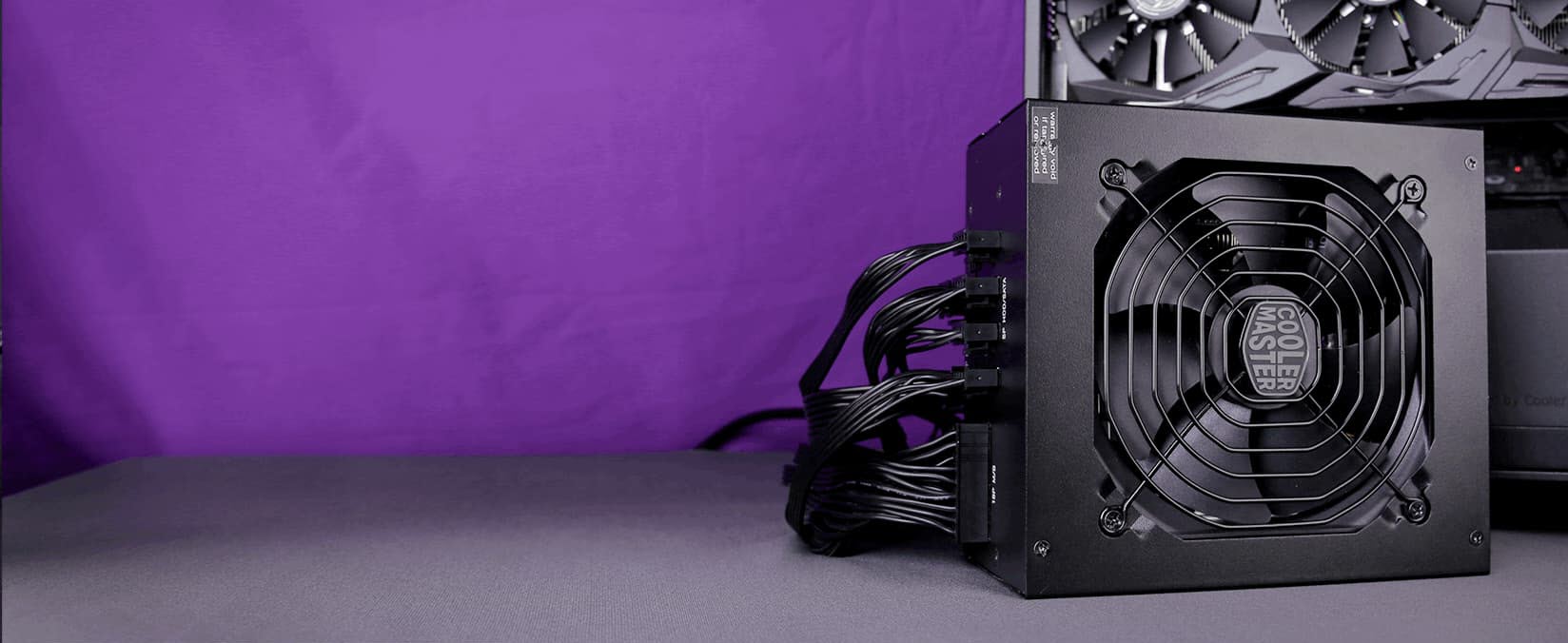

The MWE Gold V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.



While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what’s possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system’s power supply can take the heat.



The full modular version of the MWE Gold V2 comes with a set of flat black cables that can be customized to each user’s individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system’s overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.

Brand Cooler Master
Series MWE Gold 850 V2
Model MPE-8501-AFAAG-US
Type ATX12V
Maximum Power 850W
Fans 120mm HDB Fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 4 x 6+2-Pin
SATA Power Connector 12
Modular Full Modular
Power Good Signal 100-500ms
Hold-up Time 16ms min.
Efficiency 90% @ Typical Load
Energy-Efficient 80 PLUS GOLD Certified
Protection OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Input Voltage 90 – 264 V
Input Frequency Range 50/60 Hz
Input Current 12 – 6A
Output +3.3V@20A, +5V@20A, +12V@70.8A, -12V@0.3A, +5VSB@3A
MTBF >100,000 Hours
Approvals TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
Dimensions 3.39″ x 5.91″ x 5.51″
Max PSU Length 140 mm
Weight 4.96 lbs.
Connectors 1 x ATX 24 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
4 x PCI-e 6+2 Pin
12 x SATA
4 x Peripheral 4 Pin
Features Highly Efficient Performance: The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.

2 EPS Connectors: 2 EPS connectors included with all models for universal current generation motherboard compatibility.

High Temperature Resilience: The new gen offers an increase in operating temperature to its predecessor to a maximum of 50 degrees Celsius.

Fully Modular: Modular flat black cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

Hydro Dynamic Fan: The 120mm HDB fan creates less friction, for a smoothly and low RPM operations, while keeping the noise level down.

5 Year Warranty: Comes with a 5 year factory warranty from purchase date.

Package Content MWE Gold 850 V2
Power Cord
4x screws
