BIOSTAR Motherboard TB250-BTC PRO Core i7/i5/i3 LGA1151 Intel B250 DDR4 Supports 6 AMD and 6 Nvidia Graphics cards

10,000.00

Features

  • SOCKET: 1151
  • Supports 7th Generation Intel® Core™
  • Intel B250 single chip architecture
  • Support 2-DIMM DDR4-2400/ 2133/ 1866 up to 32G maximum capacity
  • Support 12 x PCI-E slots
  • Support DVI-D
  • Support USB 3.0

Out of stock

SKU: TB250-BTCPRO Category:

Description

Image result for tb250-btc pro

Image result for tb250-btc pro

Image result for tb250-btc pro

BIOSTAR THE 1ST CRYPTO

Are you desperately searching for a dedicated cryptocurrency mining motherboard for Bitcoin, Ethereum, or Zcash? Nowadays, a wide variety of crypto currencies are getting hotter and in circulation on the market. BIOSTAR is exclusively the first one to bring out a whole series of crypto mining motherboards for the latest Intel and AMD platforms to enthusiasts as the total mining solutions.

POWER PROTECTION DESIGN

The special circuit protection design for BIOSTAR crypto mining mainboards detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. Furthermore, overcurrent protection prevents the motherboard from unwanted damage when doing overclocking or an unusual current import. Last but not least, overheat protection prevents the board and the CPU from burning when exceeding the temperature limitation.TB250-BTC PRO

SAVING UP TO US$200 IN YOUR POCKET

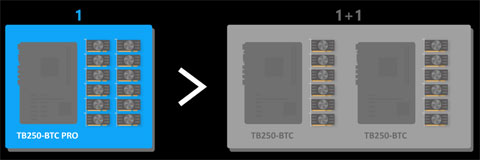

The cost of a mining system is always such a thing that a miner cares about the most. Now BIOSTAR TB250-BTC PRO saves all professional miners’ money efficiently and wisely! You can build up one crypto mining system with TB250-BTC PRO, loaded up to 12 GPUs to earn even much more profit than that of two systems with the setup of TB250-BTC and 6 GPUs respectively. That is, you may probably save a system cost around up to US$200 on the mining hardware and components. For example, the cost saving includes a CPU, a motherboard, a SSD, a memory card, and other PC peripherals. We do bring the best cost saving solution to all professional mining enthusiasts!

TB250-BTC PRO TB250-BTC PRO

TIME IS MONEY!

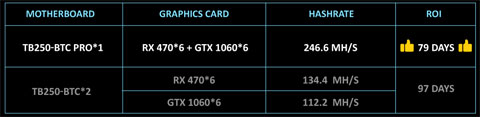

Compared to two mining machines with TB250-BTC, one ultimate mining machine with TB250-BTC PRO efficiently boosts the mining performance up to 200% to maximize your profitability and makes you spend much less time getting the highest mining return. TB250-BTC PRO brings 2X faster mining speed to increase much higher hashrate and makes the mining performance most efficient; that is, you can get the best cost of return just in 79 days , which is compared to 97 days for the two sets of TB250-BTC mining machines. We do bring the most bang for a miner’s buck and time is money. The more time you save, the more money you get!

TB250-BTC PRO

Note: The ROI may be changed, depending on the fluctuation of crypto exchange rate and hash difficulty.

HYBRID GRAPHICS CARD SUPPORT

BIOSTAR exclusively designs the awesome and neat layout of PCI-e slots, evenly equipped on the motherboard to prevent short circuit while mining. There is no more short circuit issue to bother a professional miner for non-stop mining money stably.

TB250-BTC PRO
Total 12 VGAs (NVIDIA graphics cards + AMD graphics cards, each maximum is 8 cards due to Driver and OS limitation)TB250-BTC PRO

NEAT SLOT LAYOUT DESIGN

There is no more stock problem out there for those professional miners who are desperately looking for the hot-selling and high price performance crypto mining graphics card AMD RX 470. BIOSTAR TB250-BTC PRO compatibly supports the hybrid graphics card platform and now you can easily take the hybrid GPU setup, like 6 pieces of AMD RX 470 and 6 pieces of NVIDIA GTX 1060. Others are still waiting for the stock, yet you are mining to earn tons of money day and night. Time is all about money, money, and still money to an ultimate miner!

TB250-BTC PRO

NATIVE PCI-E FOR BEST COMPATIBILITY

12 PCI-e slots of TB250-BTC PRO are thoroughly native PCI-e from the latest Intel B250 chipset. This feature is amazingly superior to some of the mining motherboards with PCI-e bridge solution to expand more slots for their so-called mining motherboards yet miners will get some incompatibility and low stability problems from that kind of mining mainboards. To top it off, BIOSTAR TB250-BTC PRO is equipped with the latest Intel B250 chipset yet others on the market are Intel H110 chipset.

TB250-BTC PRO
TB250-BTC PROTB250-BTC PROBIOSTAR TB250-BTC PRO uses Intel B250 chipset supporting native PCI-e up to 12 slots. Every slot has a dedicated channel itself that makes mining more smoothly.

TB250-BTC PRO
TB250-BTC PROTB250-BTC PROOther crypto mining motherboards use Intel H110 chipset only supporting 6 native PCI-e slots, and the other extra PCI-e slots are supported by PCI-e x1 extension chip, which makes the bandwidth limited and comes with much more mining performance problems just like low stability, low compatibility, low speed of bandwidth, and so on.

POWERFUL BASE & UNIQUE DESIGN

A robust and durable base can be effectively paired with your very right graphics cards for maximum mining profitability and performance. All BIOSTAR mining mainboards with six PCI-e slots for enthusiasts who wish to create an ultimate mining rig to be loaded up with at least six graphics cards to boost up the mining speed for higher hash rate and make the mining performance most efficient. BIOSTAR uniquely designed two extra AUX power connectors support the sufficient power to enhance the performance of graphics cards for more stable operation.

TB250-BTC PRO
TB250-BTC PRO
Specification
CPU Intel® Core™ i7 LGA 1151 Processor Intel® Core™ i5 LGA 1151 Processor Intel® Core™ i3 LGA 1151 Processor Intel® Pentium® LGA 1151 Processor Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt
Chipset Intel B250
Expansion Slots 1 x PCI-E x16 3.0 Slot 11 x PCI-E x1 3.0 Slot(Note: PEX1_6/7/8/9/10/11 slot are not compatible w/ ATX standard, users need extra coonecting kit to install VGA card for crypto mining.)
Storage 6 x SATA3 Connector
USB 4 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A) 2 x USB 2.0 Header
LAN Realtek RTL8111H – 10/100/1000 Controller Support Super LAN Surge Protection
Special Features Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update
Operating System Support Support Windows 10(x64) for Intel 7th Generation Processor ※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
H/W Monitoring CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring
Internal I/O Ports 1 x USB 3.0 Header 2 x USB 2.0 Header 6 x SATA3 6Gb/s Connector 1 x SATA Power Connector(for rear USB power enhancement) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 2 x System Fan Header 1 x Serial Header 2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
Accessories 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual
Integrated Video By CPU model Supports DX12 Supports HDCP
Dimension ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
Bundle Software BullGuard Smart Speed LAN(Windows 7/ 8.1 only) Intel Rapid Storage Technology
Warranty 3 month Warranty

Additional information

Model
Brand BIOSTAR
Series 12 Graphics card interconnection
Model TB250-BTC PRO
Supported CPU
CPU Socket Type LGA 1151
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Maximum CPU TDP (Thermal Design Power): 95 Watts
Supported CPU Technologies * Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset Intel B250
Onboard Video
Onboard Video Chipset By CPU model
Supports DX12
Supports HDCP
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 2400/ 2133/ 1866
* DDR4 2400 for 7th Generation Intel Core Processor Family
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 11 x PCI-E x1 3.0 Slots (Note: PEX1_6/7/8/9/10/11 slot are not compatible w/ ATX standard, users need extra connecting kit to install VGA card for crypto mining.)
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 Mouse
1 x PS/2 Keyboard
Video Ports 1 x DVI-D Connector, resolution up to 1920 x 1200 @60 Hz
RJ45 1 x RJ45
USB 3.0 4 x USB 3.0
USB 1.1/2.0 2 x USB 2.0 Ports
2 x USB 2.0 Ports (only 5V power, up to 1.5A)
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.0 Header
2 x USB 2.0 Headers
Other Connectors 1 x SATA Power Connector (for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Headers
1 x Serial Header
2 x PCI-E 12V 4-Pin Connectors (Must be installed when using for bitcoin mining.)
Physical Spec
Form Factor ATX
Dimensions (W x L) 11.6″ x 8.3″
Features
Features Supports 7th Generation Intel Core Processor
Intel B250 single chip architecture
Support 2-DIMM DDR4-2400/ 2133/ 1866 up to 32G maximum capacity
Support 12 x PCI-E slots
Support DVI-D
Support USB 3.0

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

OS SUPPORT
Support Windows 10 (x64) for Intel 7th Generation Processor
*Support Windows 7 / 8.1 (x64) / 10 (x64) for Intel 6th Generation Processor

BUNDLE SOFTWARE
BullGuard
Smart Speed LAN (Windows 7 / 8.1 only)
Intel Rapid Storage Technology

FEATURES
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
Packaging
Package Contents ACCESSORIES:
2 x SATA Cables
1 x I/O Shield
1 x DVD Driver
1 x User Manual
